360 Degree Rotating Heavy Duty Handling Equipment

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

360 Degree Rotating Heavy Duty Handling Equipment

Brand Name : Material Handling Turntable

Model Number : Material Handling Turntable

Certification : CE ISO SGS

Place of Origin : Henan China

MOQ : 1

Price : USD5000-8500/set

Payment Terms : L/C, T/T

Supply Ability : 30sets/week

Delivery Time : 20 work days after received balance payment

Packaging Details : Trap and wooden case

Wheel quantity : 4

Product name : 360 degree rotating turntable industrial material handling carts and trucks

Capacity : 5-40T

Material : Q235

Color : Customized

Type : Material Handling Turntable

Contact Now

360 Degree Rotating Heavy Duty Freight transit Turntable Material Handling Carts And Trucks

This series 360 Degree Rotating Heavy Duty Freight transitTurntable Material Handling Carts And Trucks for Plant is powered by battery, traveling cable, rail, generator or other way.. This series 360 Degree Rotating Heavy Duty Freight transitTurntable Material Handling Carts And Trucks is arranged underground in the ground.The 360 Degree Rotating Heavy Duty Freight transitTurntable Material Handling Carts And Trucks has a track on the countertop.Other transport vehicles may be driven according to the track on the countertop of the 360 Degree Rotating Heavy Duty Freight transitTurntable Material Handling Carts And Trucks.

Advantage

1. Stable driving
2. High accuracy of rail connection
3. Totally automatically operated
4. Convenient and flexible
5. Control panel with wire or romote control

6. There is a track on the countertop of the 360 Degree Rotating Heavy Duty Freight transit Turntable Material Handling Carts And Trucks for other vehicles to transport

7. Other transport vehicles may be driven according to the track on the countertop of the 360 Degree Rotating Heavy Duty Freight transit Turntable Material Handling Carts And Trucks

8. The turntable transfer car is located underground on the cement surface

9. The turntable transfer car can be used as a transit vehicle

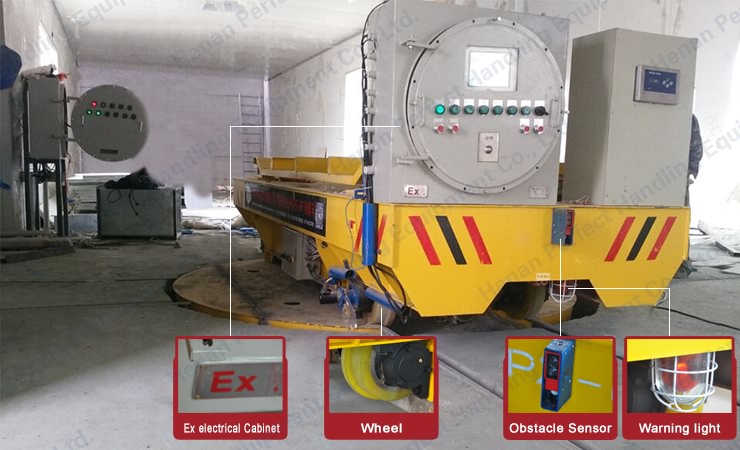

Main Components
360 Degree Rotating Heavy Duty Handling Equipment


Technical parameters

Model BXC-2T BXC-20T BXC-50T BXC-100T BXC-150T
Rated Load(t) 2 20 50 100 150
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Running Time 4.32 4 3.3 3.2 2.9
Battery Voltage 24 48 48 72 72
Running Distance(Km) 6.5 4.8 4 3.8 3.2

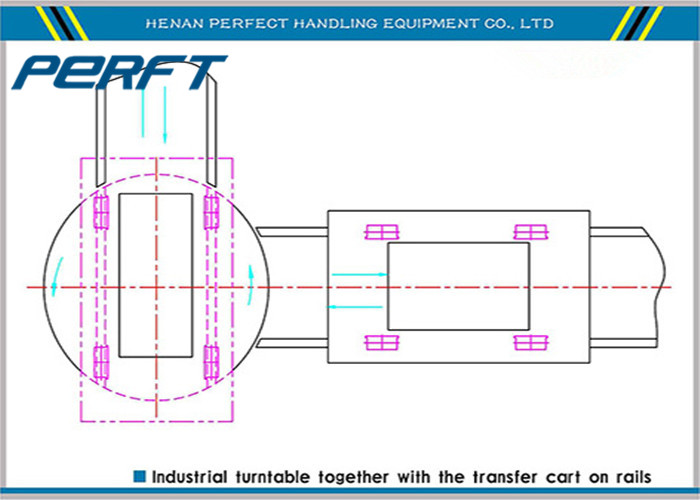

The scheme

360 Degree Rotating Heavy Duty Handling Equipment

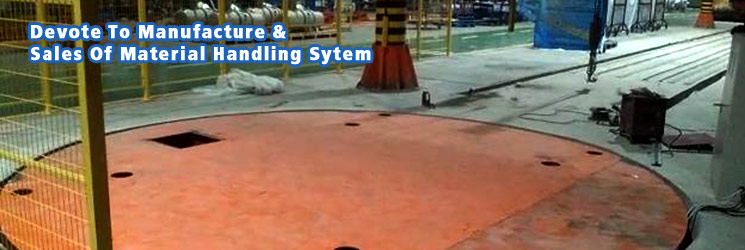

Application

360 Degree Rotating Heavy Duty Handling Equipment

360 Degree Rotating Heavy Duty Handling Equipment
