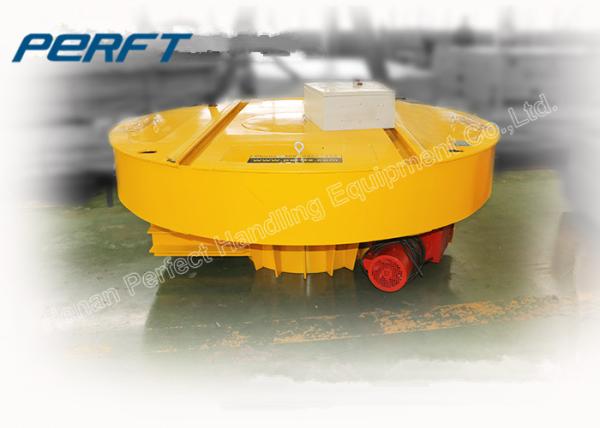

Industrial Motorized Pallet Turntable Can 360 Degree Rotating Turntable
This series industrial material handling carts can 360 degree rotating turntable for Plant is powered by battery, traveling cable, rail, generator or other way.. This series Railroad Handling Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, Railroad Handling Vehicle On Rail is specially designed to cooThis series industrial material handling carts can 360 degree rotating turntable for Plant is powered by battery, traveling cable, rail, generator or other way.. This series Railroad Handling Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, Railroad Handling Vehicle On Rail is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another. The Railroad Handling Vehicle has a feature of low height, heavy duty, safe security and other advantages.
Main Components of the motorized industrial turntable heavy duty material handling rail transfer carts

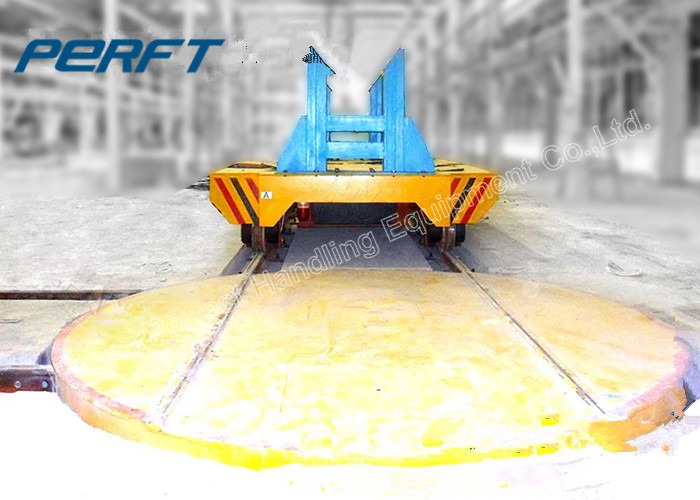

The Turntable Rail Transfer Car is a kind of handing system ,which can make the rail car turn 90 degree on rails .Principle: Transfer Car runs on the turntable ,which will automatically rotate or manually rotate to realize the joint with vertical rails .After turnable rotating ,the Transfer Cart can run along the vertical rails .The handing solution can be applied in the occasion such as ring rails ,etc. The turnable system of the industrial material handling carts can 360 degree rotating turntable for Plant runs steadily and has the features such as high rail jointing accuracy and can meet full automatic electrical control
Advantage of the motorized industrial turntable heavy duty material handling rail transfer carts
The industrial material handling carts can 360 degree rotating turntable for Transfer is a patented product in perfte's company, which can run on the 90 degree turning railway. Wherever your cart is, only the turnplate exist, your cart an start in every direction,especially in working line or warehouse. it is convenient to transport your production. According to the way, our enterprise design the turnplate to satisfy others' demand.the feature as it follows:
1.Stable driving
2.High accuracy of rail connection
3.Totally automatically operated
4.Convenient and flexible
5.Control panel with wire or romote control.
Application of the motorized industrial turntable heavy duty material handling rail transfer carts
Technical parameters of the motorized industrial turntable heavy duty material handling rail transfer carts
| Model | BXC-2T | BXC-20T | BXC-50T | BXC-100T | BXC-150T |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Running Time | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Distance(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
Packaging & Shipping of the industrial material handling carts can 360 degree rotating turntable
Our Service
We always follow the principle that customers are our god and we will think about all the things in the position of consumers, to deal with all problems in high efficient and serious attitude. We will provide best service from the beginning till the end and pay more attention to credibility. Perfect is pursuing a perfect combination in quality and art and always try our best to provide most satisfied service for our consumers. Your satisfaction for the industrial material handling carts can 360 degree rotating turntable is what we are striving for!
