Flatbed Remote Control Rail Transfer Car 10 Ton Heavy Load

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

Flatbed Remote Control Rail Transfer Car 10 Ton Heavy Load

Brand Name : Remote control 10 ton bogie electric flat transfer carriage

Model Number : Remote control 10 ton bogie electric flat transfer carriage

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1 set

Price : USD 3000~6800SET

Payment Terms : L/C, T/T

Supply Ability : 100sets month

Delivery Time : 20 wok days after received balance payment

Packaging Details : trap and wooden case

Product Name : Remote control 10 ton bogie electric flat transfer carriage

Item : Cart

Material : Q235

Usage : Heavy Duty

Name : battery powered railway motorized trolley

Capacity : 1-300T(Customized)

Certificates : CE ISO SGS

Contact Now

Remote Control 10 Ton Heavy load Electric Transfer Platform on Rails for warehouse

Introduction

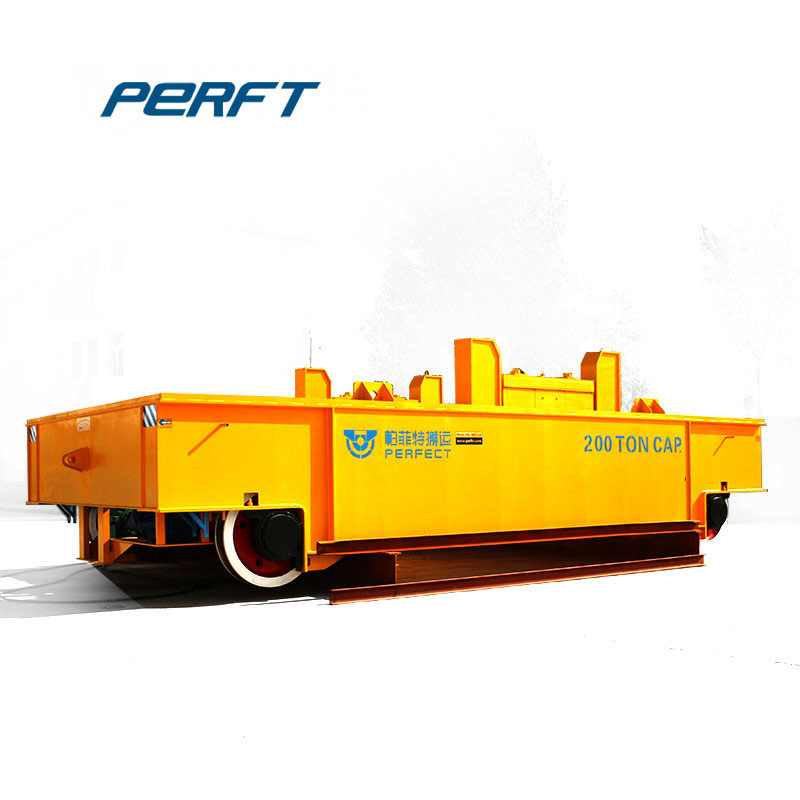

PERFECT is specialized in designing and manufacturing of heavy duty material transport equipment. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, factory transport solution, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle and so on. The coil transfer carts are used to transport steel coils and pipes, die, machine parts, paper products for manufacturing industry; The factory transport solution is mainly to offer heavy duty horizontal transportation for manufacturing;while the motorized battery operated transport vehicle specially apply to transport heavy loads from one warehouse to another. With the steel box girder structure and safety devices make the electric transfer vehicle with easily, precisely and safely move up to 200 tons. .

Flatbed Remote Control Rail Transfer Car 10 Ton Heavy Load
Technical Parameter
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Flatbed Remote Control Rail Transfer Car 10 Ton Heavy Load

Applicable sites


PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

Advatages


---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Package of battery powered railway motorized trolley
Our remote control 10 ton bogie electric flat transfer carriage, battery powered railway motorized trolley not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. The power line trolley body is packed with tarp, and the wheel and parts of the power line trolley will be packed with wooden case. According the table size and quantity, the power line trolley would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.

Flatbed Remote Control Rail Transfer Car 10 Ton Heavy Load


Product Tags:

rail transfer car 10 ton



flatbed rail transfer car 10 ton



remote control rail transfer car


Quality Flatbed Remote Control Rail Transfer Car 10 Ton Heavy Load wholesale

Flatbed Remote Control Rail Transfer Car 10 Ton Heavy Load Images
