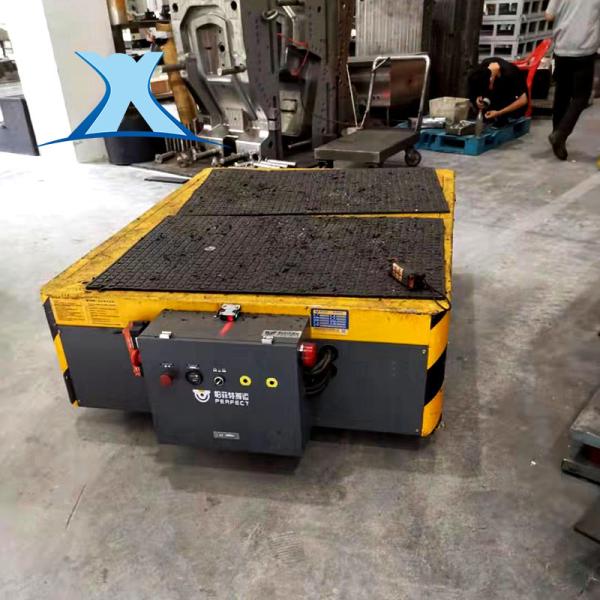

50t Battery Transfer Cart Free Turning Coil Pallet Motorized

Name: 50t Battery Transfer Cart Free Turning Coil Pallet Motorized
Brand: perfect
Price: 2000 USD

Quality 50t Battery Transfer Cart Free Turning Coil Pallet Motorized wholesale

Brand Name : perfect

Model Number : die transfer carts

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1 set

Price : USD 2000~20000 set

Supply Ability : 100sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : Die transfer cart

Capacity : 1-50T

Color : Customized

Running speed : 0-20m/min

Certificates : CE ISO SGS

Contact Now

High Quality 50T ton free turning Battery Powered Coil pallet motorized transfer cart

Introductions for cart

Our battery powered coil trolley are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil rail car is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.

50t Battery Transfer Cart Free Turning Coil Pallet Motorized

Parameter Table

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter (mm)		270	350	500	600	600
Running Speed (m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

50t Battery Transfer Cart Free Turning Coil Pallet Motorized

Advantages

Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
