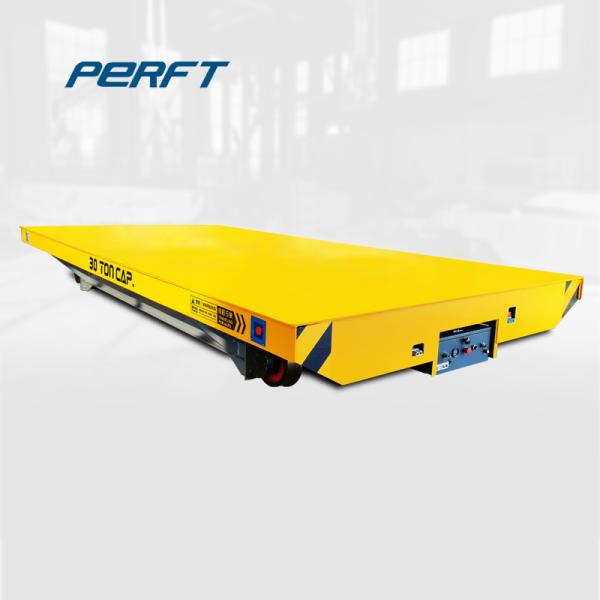

Forklift 380v Battery Transfer Cart 300t Capacity

Name: Forklift 380v Battery Transfer Cart 300t Capacity
Brand: ferry transfer vehicle cart
Price: 2000 USD

Quality Forklift 380v Battery Transfer Cart 300t Capacity wholesale

Brand Name : ferry transfer vehicle cart

Model Number : ferry transfer vehicle cart

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1 set

Price : USD 2000~7600 set

Supply Ability : 100 SETS month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : ferry transfer vehicle cart

Application : Transfer Materials

Color : Customized

Item : Cart

Power source : Battery

Capacity : 1-300T

Certificates : CE ISO SGS

Contact Now

Forklift Saving Heavy Duty Industrial Steel Bed Platform Battery Powered Cart

Introductions

Our heavy duty transport trailer is driven by cable reel. The 380V alternating current transmitted into the electric control system directly and then drive the motor to make the transporter trailer start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.

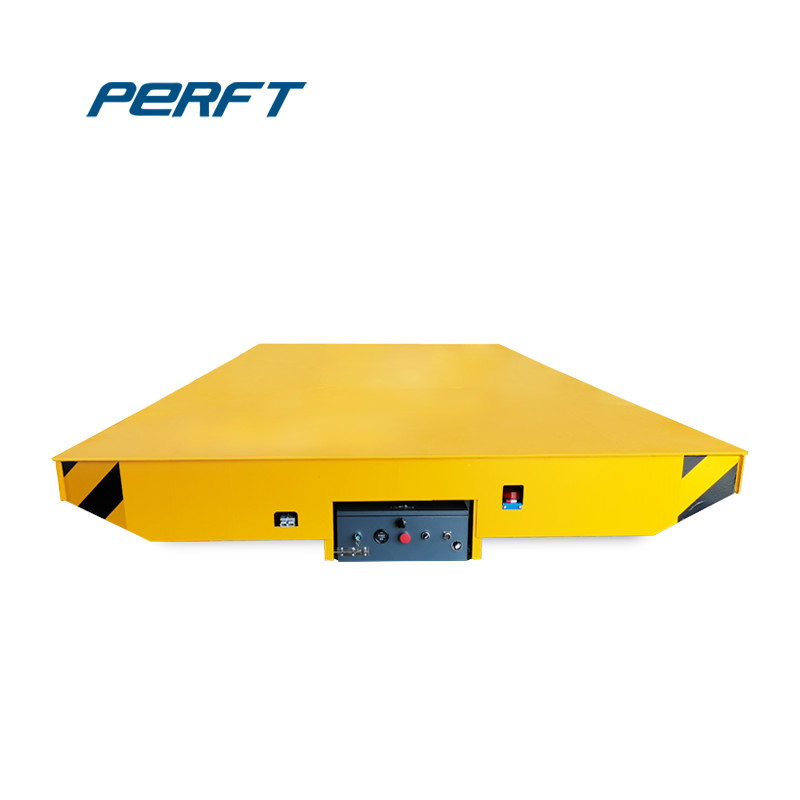

Forklift 380v Battery Transfer Cart 300t Capacity

Application

The heavy duty transport trailer can operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want!

Forklift 380v Battery Transfer Cart 300t Capacity

Technical parameter

Model		2t	20t	50t	100t	150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Running time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for Once Charge(KM)		6.5	4.8	4	3.8	3.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

Functions & Advantages of ferry transfer vehicle cart

NOTES:

With forward or backing driving;
Options for automatic control;
Payload from 1 ton to 300 tons;
Fixed speed or variable speed capabilities;
On board charging is available if battery drives;
Flat deck or fixtures for transporting special payload;
Custom deck configurations may include lift, tilt, or rotate function;
Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
The Ferry car can run on the C-form track or S-form track and L-form track;

Our Factory

We have been specializing in transfer cart manufacture for over 15 years.With advanced equipment,excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. Our products can be used in industrial,steel,pharmacy,mining and many other lines. So we can assure that we will provide high quality and cost-effective products for you.
