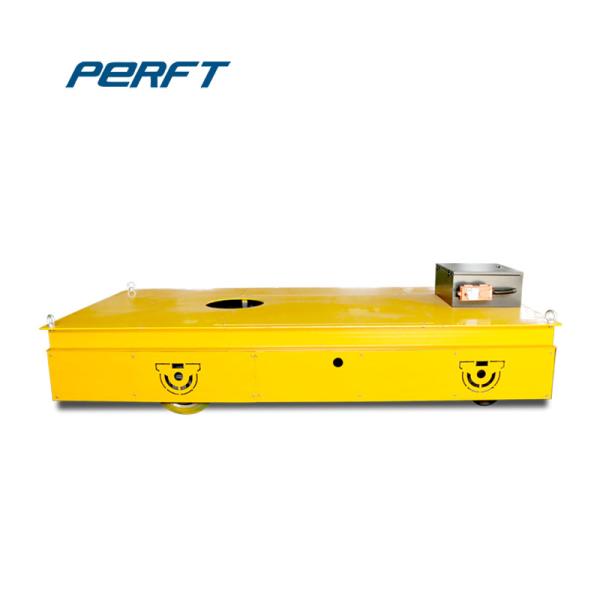

Rubber Wheel Battery Power Material Handling Rail Transfer Cart Flat Trolley
Description
We have designed transfer trolleys for all kind of industries. Our versatility to manufacture this vehicles is proven by our experience and adaptations. These transfer trolleys can be made according to our clients' needs and with clear commitment to meet them.
The transfer trolleys are designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the solutions you need and each style can be designed for your specific application.
Product parameters
Technical parameters of BWP-15T (Customizable)
| Model | BWP-15T |
| Rated load (T) | 15 |
| Table size | length(L) | 2000 |
| Width(W) | 1500 |
| Height(H) | 450 |
| Wheel Base (mm) | 1200 |
| Wheel Diameter(mm) | Φ270 |
| Ground Clearance (mm) | 50 |
| Motor Power (Kw) | 1 |
| Battery Capacity(Ah) | 180 |
| Battery Voltage(V) | 24 |
| Running Time When Full Load | 4.32 |
| Running Distance for one Charge(Km) | 6.5 |
| Max Wheel Load (KN) | 14.4 |
Applications
The Electric Flat Trolleys of PERFECT allow movement charges at ground level in all types of industries and applications, such as assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
Our service
1. We offer a full range of customized services
2. We can customize the transfer cart according to your needs for the tonnage, shape, color, safety device and the way of operation.
Welcome to consult
Consult now for free technical advice from engineers
Transportation of Rail Flat Trolley
*For length is less than 6m, the width is less than 2.2m. Electric Flat Transporter will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. Electric Flat Transporter needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Certificate
