10 T Motorized Steerable Material Handling Powered Transfer Battery Trolley

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

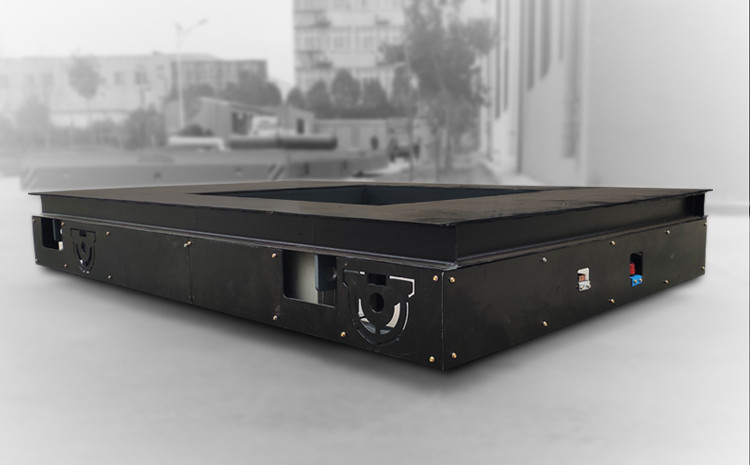

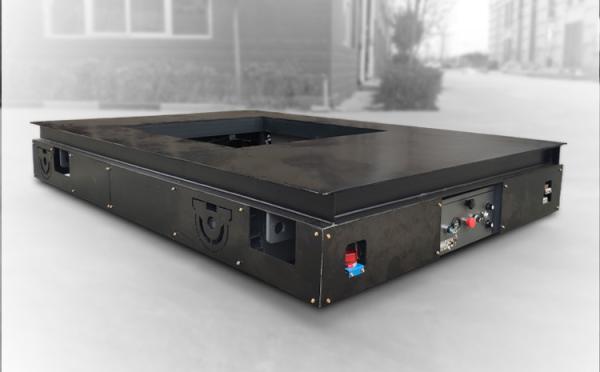

10 T Motorized Steerable Material Handling Powered Transfer Battery Trolley

Brand Name : perfte

Model Number : Coil Transfer Car

Certification : ISO 9001,CE,CCPIT

Place of Origin : Xinxiang-Henan-China

MOQ : 1

Price : $7000-$12000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 60 set per month

Delivery Time : 5-8 work days

Packaging Details : The cart's body is packed with a tarp, and the wheel and parts of the cart will be packed with wooden case.

Rated load (T) : 1-150t

table size : customize

running speed : 0-20

ground requirement : cement floor

control mode : push button control, wireless remold

Motor Power (Kw) : 1.5

Battery Capacity(Ah) : 180-600

charger function : automatic charging

ground clearance : 50

Contact Now

10 T Motorized Steerable Material Handling Powered Transfer Battery Trolley

Description

PERFECT's battery transfer trolleys are movable platforms used for the horizontal movement of materials, assemblies and other items. It is powered by storage battery, which is installed on the transfer carts. The transfer carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. Usually the vehicles are used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others.These cargo loading trolleys are designed to operate on floor or rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

Application

Uses of Electric Transfer Wagon:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

Parameters

Model BWP-2t BWP-20t BWP-50t BWP-100t BWP-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter (mm) 270 350 500 600 600
Running Speed (m/min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(km) 6.5 4.8 4 3.8 3.2
Recommended Rail Model P15 P24 P43 QU100 QU100

Successful case

A company in India ordered a 10t truck in our company in October 2018. They are mainly used to transport steel coils. They have driven, but they are unsafe and unstable. Therefore, they need a ground truck to transport from the warehouse. To the processing workshop, the crane hoisted the steel coil and placed it on the truck smoothly. The mold car passed the two workshops to transport the steel coil smoothly to the processing workshop.
