30T Heavy Load Factory Cargo Railway Transport Cart By Battery Power

Henan Perfect Handling Equipment Co., Ltd.
Contact Now

30T Heavy Load Factory Cargo Railway Transport Cart By Battery Power

Brand Name : PERFECT

Model Number : BXC

Certification : CE, SGS, ISO

Place of Origin : Xinxiang, China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 75 Sets per month

Delivery Time : 45 Days

Packaging Details : The body will be packed with tarp, and other parts will be packed with wooden cases.

Product Name : Die Transfer Cart

Powered Source : Storaged Battery

Operation Mode : Pandent and Remote Controller

Cart Frame : Q235B

Load Capacity : 1-200T (Customized)

Color : Yellow, Customized

Working Time : 4-5 Hours

Wheel Type : Polyurethane Coated Wheel

Safrty Device : Buffer, Alarm light, Emergency Stop Buttons

Special Function : Anti-Explosion, Heat-Resistant, Lifting, Dumpling

Contact Now

30T heavy load Factory Cargo Railway Transport cart by battery power

Introduction

Our steering transport trailers don't have power and are pulled or towed by another powered transfer cart or a forklift which with adequate power. It's no doubt that it's a cost-saving choice for you compared with some other powered transfer carts. Our products can be customized, which provide many different kinds of models to choose, so you can cooperate with us freely and get the product you want.

Application

Our "light-duty" steel frame trailers are ideal for warehousing, light manufacturing and automotive assembly plants. It's load capacity ranges from 1 to 4 ton.
Our
"medium-duty" steel frame trailers are a proven Flat Transfer Trailer used for a wide range of applications and all industries. The majority of the units manufactured range in capacity from 5 Ton to 50 Ton.
Our
"heavy-duty" steel frame trailers are designed for handling the large and heavy loads found in the steel, automotive and heavy manufacturing industries. It's load capacity ranges from 50 ton to 300 ton.

Customization

1. Appearance
Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure, etc.


2. Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function,

Weighting system, etc.


3. Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.


4. Special Design

Round corner, Hold pendant box, Lifting hole, etc.

Parameters

Model BXC-2t BXC-20t BXC-50t BXC-100t
Rated Load(t) 2 20 50 100
Table Size (mm) Length(L) 2000 4000 5500 6500
Width(W) 1500 2200 2500 2800
Height(H) 450 550 650 900
Wheel Base(mm) 1200 2800 4200 4900
Rail Inner Gauge(mm) 1200 1435 1435 200
Wheel Diameter(mm) 270 350 500 600
Wheel Quantity 4 4 4 4
Ground Clearance(mm) 50 50 50 75
Running Speed(min) 0-25 0-20 0-20 0-20
Motor Power(kw) 1 2.2 5 10
Battery Capacity 180 180 330 440
Battery Voltage 24 48 48 72
Running Time When Full Load 4.32 4 3.3 3.2
Running Distance for One Charge(Km) 6.5 4.8 4 3.8
Max Wheel Load(KN) 14.4 77.7 174 343.8
Reference Weight(t) 2.8 5.9 8 14.6
Recommended Rail Model P15 P24 P43 QU100

Advantages

Maybe you will have a consideration before buying a car, I recommend you our products to you strongly for the following reasons:
Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.

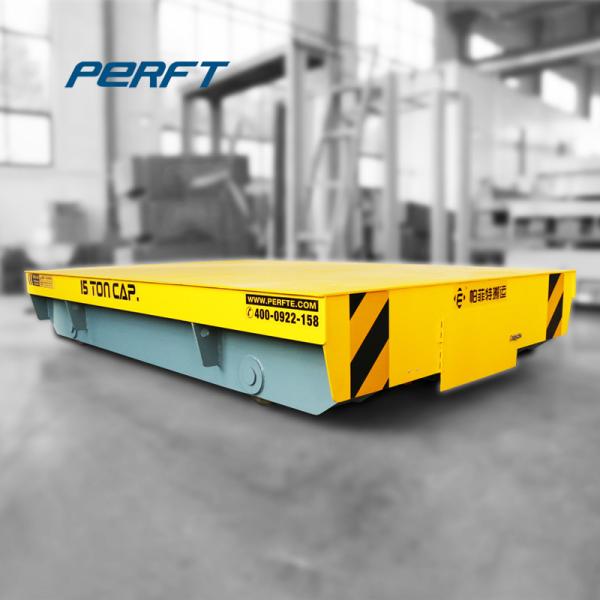

30T Heavy Load Factory Cargo Railway Transport Cart By Battery Power

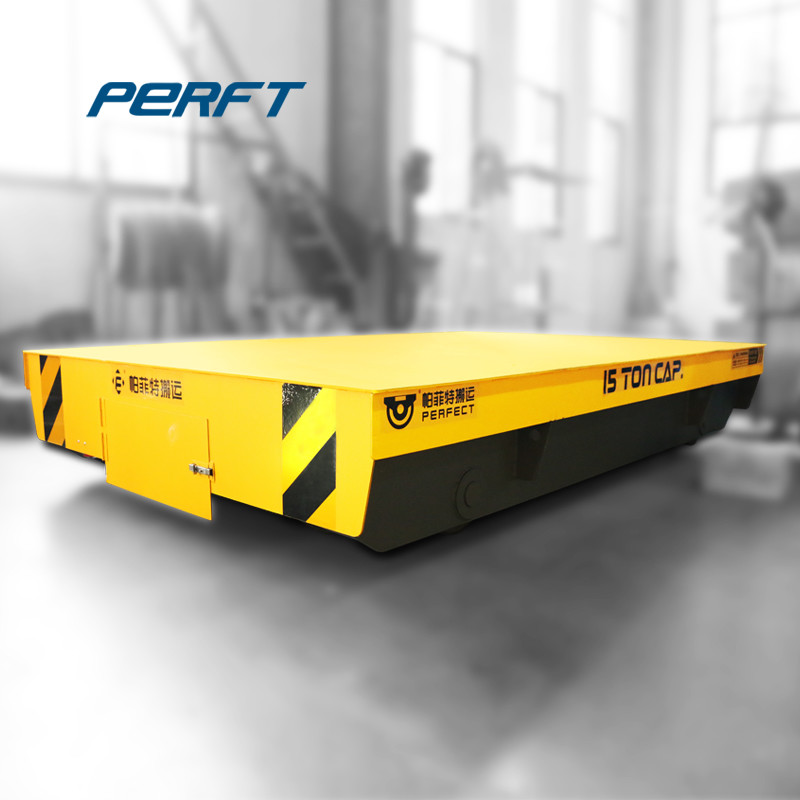

30T Heavy Load Factory Cargo Railway Transport Cart By Battery Power

Help you to choose the most suitable cart

Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!

  • What material/cargo are you going to transfer?
  • What kind of ground does the transfer cart operate on? (rails or cement floor)
  • What’s the specification table size ? (length, width and height)
  • How long is the running distance?
  • How many working hours do you have everyday?
