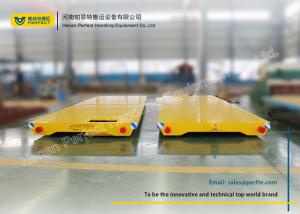

No Power Rail Mounted Towed Pallet Transfer Carts for CargoTransfer
What Exactly Is Towed Pallet Transfer Carts?
The no power rail mounted towed pallet transfer carts is one kind of material handling equipment for transporting heavy duty cargo. It has no power, which need to be towed or pulled by forklift, tractor, or motor machine. According to your application, you can choose track or trackless no power towed pallet transfer carts for material transportation. Pushing device and pulling device is available to the towed pallet transfer carts at front and rear, by which two or more carts can be connected together hugely increasing the efficiency.
Applications and Working Environment?
The kind of no power rail mounted towed pallet transfer cartsis so popular and widely used in various occassions. It is suitable to be used in the bad environment, such as high-temperature and so on.
With the simple structure and low cost, and it has not so strict requirement on the construction of the rails, it is the first choice for the plant. About that, our company have professionsal team,and specialized study ways, and industry pallet transfer carts is about 15 historys that we insist on the item. up to now, we can provided the largest rated load---300 tons.
What Are Some of The Characteristics of This Kind of Transfer Carts?
What Kinds of Components are Part of This Transfer Carts?
The no power rail mounted towed pallet transfer carts including elements as follows:
-
Frame of the cart
-
Cast steel wheels
-
Safe sliding wire
-
Motor
-
Reduction gear
Technic Parameter Sheet
Technic Parameters for Transfer Carts | Model | BP-5T | BP-10T | BP-15T | BP20T | BP-30T | BP-45T | BP-60T |
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height (mm) | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| On cement floor | Tire Specification | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire |
| On rail | Rail Inner Gauge(mm) | 1435mm |
| Wheel material | LD steel wheel, Angel box wheel |
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized |
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Customized
load capacity, table size, color and rail gauge can be customized.
