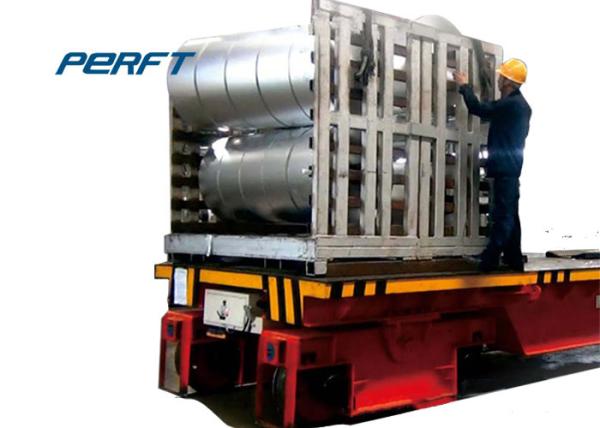

50 ton carbon steel coil transfer car battery powered for Aluminum coil transportation
The 50 ton carbon steel coil transfer car battery powered for Aluminum coil transportation is used to transfer coils, and more coils can be added during the transportation.The 50 ton carbon steel coil transfer car runs on the track,is a kind of steel,aluminum,metal,cylindrical or iron coil moving equipment, weighing up to 1-300 tons from one bracket in the factory to another.
Advantages of the 50 ton carbon steel coil transfer car battery powered for Aluminum coil transportation
1. Powered by battery,cable and low-voltage track.
2. No harm to the cemment ground.
3. Can add V-shaped and drum protection coils from falling from cross transport.
4. No environmental limitation.
5. The V/U frame can be take apart optional.
6. Remote control and button suspension are available.
7. The safety devices such as buffers,proximity switches, acousto-optic alarms,etc have been employed.
8. The table size and capacity can be customized.

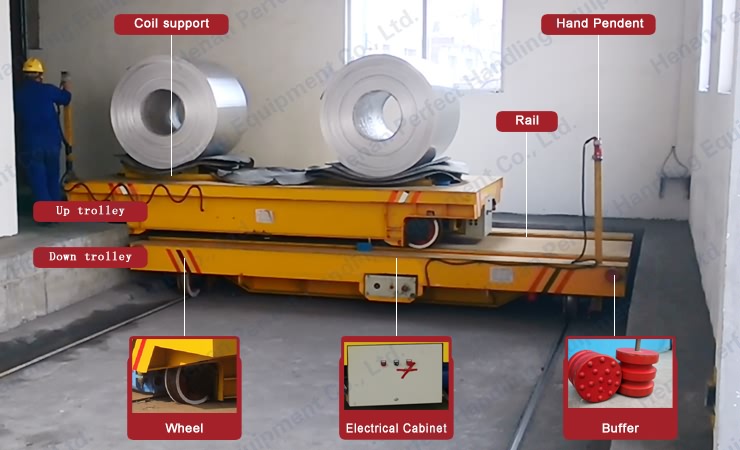

Main components of the 50 ton carbon steel coil transfer car battery powered for Aluminum coil transportation
Technical parameters of the 50 ton carbon steel coil transfer car battery powered for Aluminum coil transportation
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |

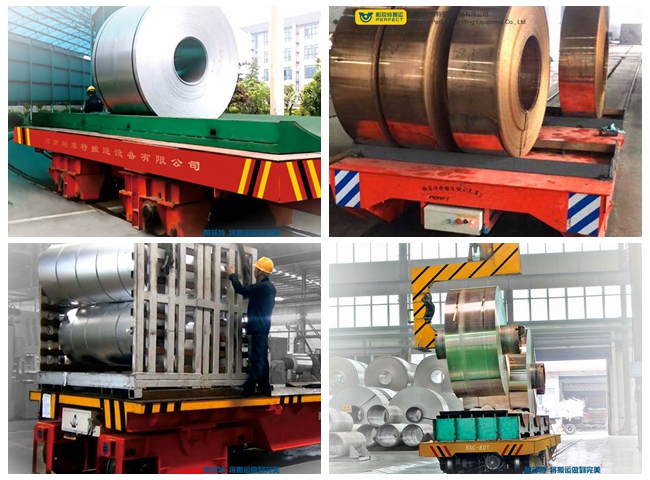

Application and usage of the 50 ton carbon steel coil transfer car battery powered for Aluminum coil transportation
