Material Transportation Portable Lifting Platform Buffer With Radar Detector

Product Categories

Henan Perfect Handling Equipment Co., Ltd.

Contact Now

Material Transportation Portable Lifting Platform Buffer With Radar Detector

Name: Material Transportation Portable Lifting Platform Buffer With Radar Detector
Brand: PERFECT
Price: 1 USD

Quality Material Transportation Portable Lifting Platform Buffer With Radar Detector wholesale

Brand Name : PERFECT

Model Number : BXC

Certification : CE, SGS, SASO

Place of Origin : Xinxiang, China

MOQ : 1 Set

Delivery Time : 45 Days

Packaging Details : The body will be packed with tarp and the parts will be put in wooden cases.

Year : 2017

Type : Hydraulic Lifting

Condition : New

Color : Yellow, Customized

Wheel Quantity : 4

Power : Storage Battery

Safety Device : Alarm Light, Buffer, Radar Detector

Material : Steel

Brake : Electromagnetic Brake

Wheel : PU Wheel

Contact Now

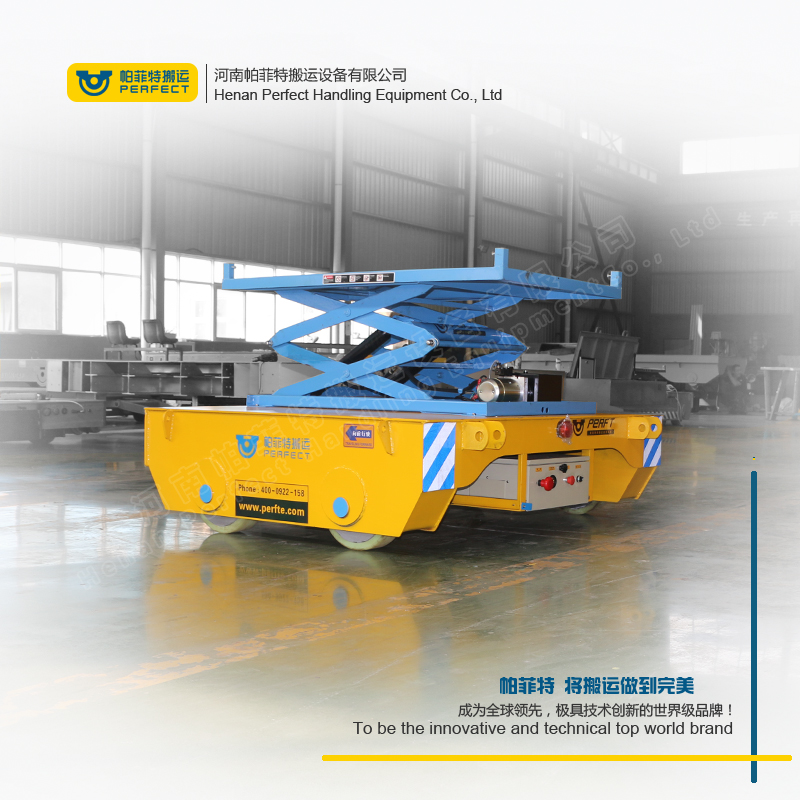

Factory Using Scissor Hydraulic Lifting Platform for Material transportation

Product Preview of Scissor Hydraulic Lifting Platform
Our lifting cart are powered by storage power. So it's very convenient for you to move it to anywhere else to life what you want. It adopts Scissor Hydraulic Lifting mode to lift the heavy cargo. It's very stable and rise or down smoothly in the process of working. The table size and lifting height are both customized. Moreover, two carts can work at the same time.You can use remote control or pendant to operate it easily.

Using Sites of Scissor Hydraulic Lifting Platform
Our lifting carts are wildly used in many different lines and sites. For example, you can use it to transfer coil materials in the factory, trasport cargo in the airport, load containers in the wharf and used in the construction. All in all, we can provide all kinds of transfer carts for you according to your using environments.

Parameters of Scissor Hydraulic Lifting Platform

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(Km)		6.5	4.8	4	3.8	3.2
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

Material Transportation Portable Lifting Platform Buffer With Radar Detector

Advantages of Scissor Hydraulic Lifting Platform

Sales Service
Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
Material Transportation Portable Lifting Platform Buffer With Radar Detector

Contact Information
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!

What material/cargo are you going to transfer?
What load capacity do you want?
What kind of ground does the transfer cart operate on? (rails or cement floor)
What’s the specification table size ? (length,width and height)
How long is the running distance?
How many working hours do you have everyday?
What special requirements do you have?
