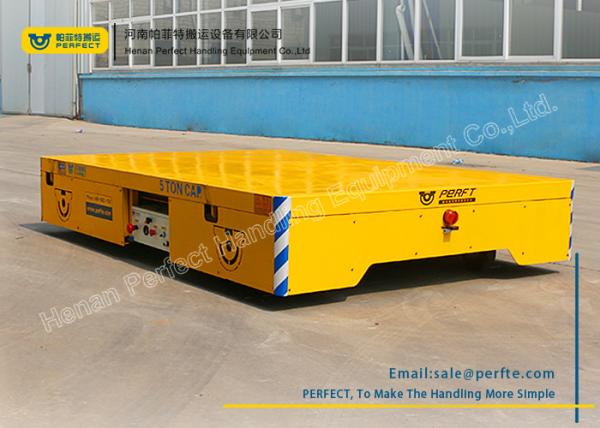

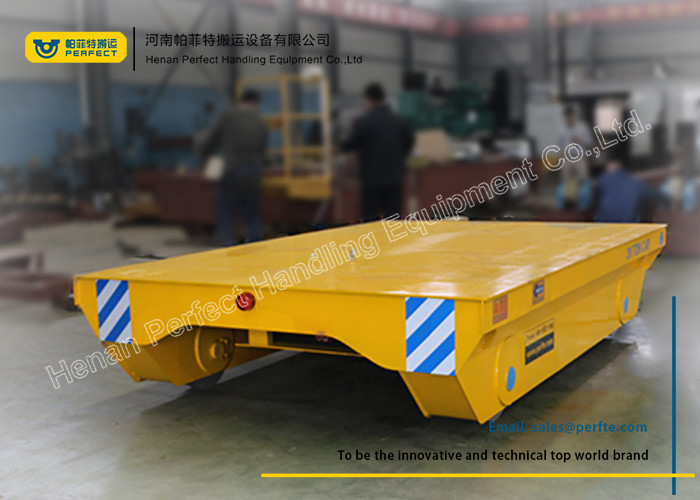

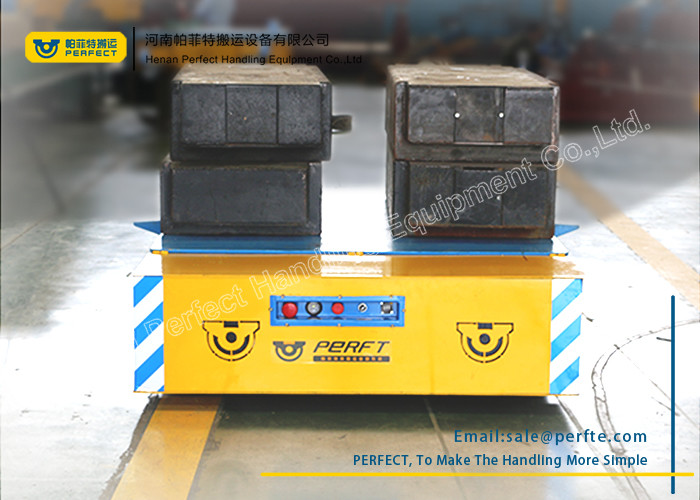

Factory use Heavy Industry Transport Trailer Material Electric Transfer Cart
Descraptions
This kind of Heavy Duty Flat Die and mold Transfer Cart for Factory Material Handling is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on.kpx flat carts can be used both on the “S”and arc-shaped railways.
Advantages
1.It has no strict requirement for the construction of the railway
2.No limit of running distance
3.Safe and convenient operation for there is no wire outside the car
4.Adjustable speed
Technical parameter table
| Model | 2t | 20t | 50t | 100t | 150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| | Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| | Heigth(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 |
Company inf
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
