ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment
This kind of ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on.kpx flat carts can be used both on the “S”and arc-shaped railways.The supply power of the ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment can be choose,such as:rail,cable drum...
Advantage and functions of the ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment
1. Fixed support ensures the stability of ladle transfer cart.
2. The Fixed support of the ladle transfer cart is customized according to your requirements if need.
3. The supply power of the ladle transfer cart can be choose,such as rail motorized,battery powered,cable drum...
4. The ladle transfer cart has an explosion-proof device.
5. The platform of the ladle transfer cart is insulated material.
6. The ladle transfer cart can customized the lifting equipment,hydraulic lifting...
7. The capacity and table size of the ladle transfer cart can be customized according to you requied.
Technical Table of the ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment
| Model | 2t | 20t | 50t | 100t | 150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 |
The scheme of the ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment
Application and Usage of ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment
Product Tags:
|
|

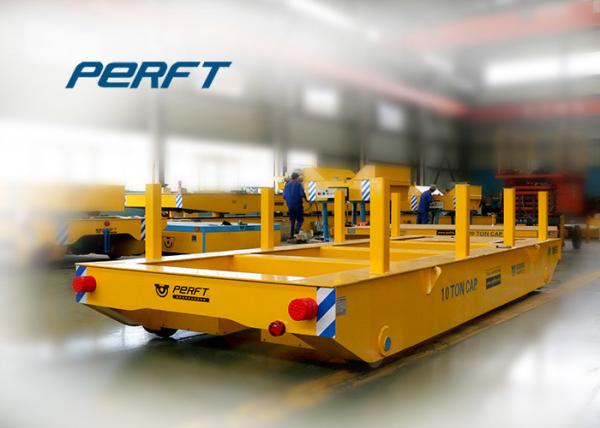

CE Certified Ladle Transfer Car 2.9 - 4.32 Running Time When Full Load Images
|
