Professional Special Ladle Transfer Car Battery Powered 1-300T Capacity

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

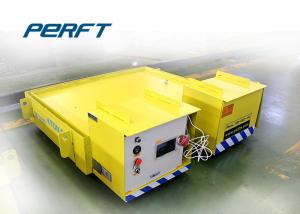

Professional Special Ladle Transfer Car Battery Powered 1-300T Capacity

Brand Name : molten steel ladle transfer cart

Model Number : molten steel ladle transfer cart

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 2000~7100 set

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Payment Terms : L/C, D/A

Product Name : special transporter to transfer molten steel ladle transfer cart

Material : Q235

Powered source : Battery

Capacity : 1-300T

Warranty : 12 Months

Feature : Easy Operation

Contact Now

special transporter to transfer molten steel ladle transfer cart

Description of electric transfer cart

This special transporter to transfer molten steel ladle transfer cart is usually used at ship yard, plant and factory, certain production line. The material handling electric transfer cart could get power from the battery. The battery is installed inside the molten steel ladle transfer cart. The electric transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The molten steel ladle transfer cart construction is based on our world renowned die material handling electric transfer cart and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress.
Professional Special Ladle Transfer Car Battery Powered 1-300T Capacity

Professional Special Ladle Transfer Car Battery Powered 1-300T Capacity

Technical Parameter of material handling electric transfer cart
Model 2t 20t 50t 100t 150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Professional Special Ladle Transfer Car Battery Powered 1-300T Capacity
Professional Special Ladle Transfer Car Battery Powered 1-300T Capacity
