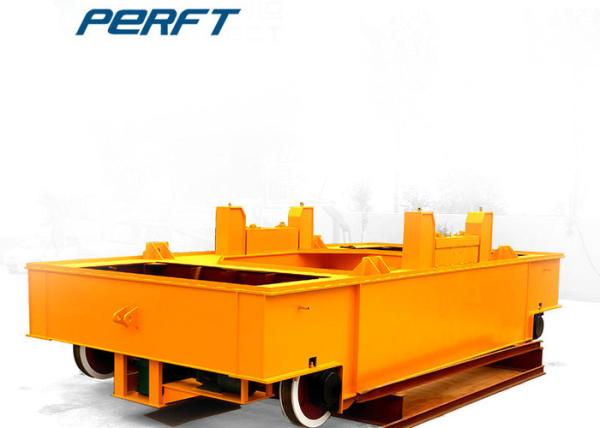

25 ton easy operated industry heavy duty steel ladle handling equipment
Description
The ladle transfer car is specially designed to transfer the high-temperature ladle, this kind of car has strict requirements on safety and ability of anti-high temperature, so the materials, driving system and electrical control of the car should be specially designed. The heat insulating material is used in the car to resist the high temperature.
ladle transfer car is specially designed to transfer the- temperature ladle. This kind of car has strict requirements on safety and ability of anti-high temperature, so the materials, driving system and electrical control of the car should be specially designed. The traction motor is designed in slow start and stop to reduce the inertia of the car and avoid molten steel or slag from splashing. The heat insulating material is used in the car to resist the high temperature. Usually, two motors are prepared, so when one is damaged by the ladle’s high temperature the other can be used to continue the work.
Advantages
The ladle transfer cart is can be customized, the customs can choose a track or trackless, battery power or cable power. The ladle transfer cart heavy duty transport cart, which can carry molten metal runs on rail smooth with v frame in case of splashing in a steel mill. It adopted stainless steel, because of the hot metal roller has Corrosive.
Application

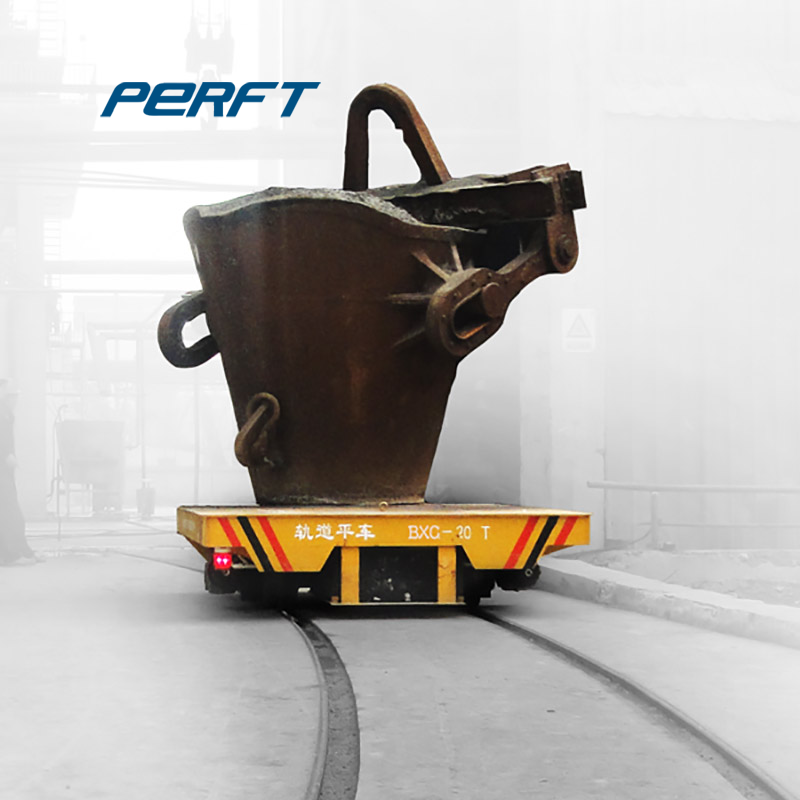

The series handling equipment is suitable for heavy-duty load, high using frequency and high-temperature environment. It can be used transport steel ladle to prevent the molten steel and steel slag from splashing.
Technical parameters:
| Capacity(t) | 25 |
| Table Size(mm) | 4500*2200*600 |
| Wheel Base(mm) | 3200 |
| Rail Inner Gauge(mm) | 1435 |
| Wheel Diameter(mm) | 400 |
| Wheel Quantity | 4 |
| Ground Clearance(mm) | 50 |
| Running Speed(m/min) | 0-20 |
| Traveling Length(m) | 30 |
| Max Wheel Load(KN) | 94.5 |
| Reference Weight(t) | 6.2 |
| Recommended Rail | P38 |
Other function

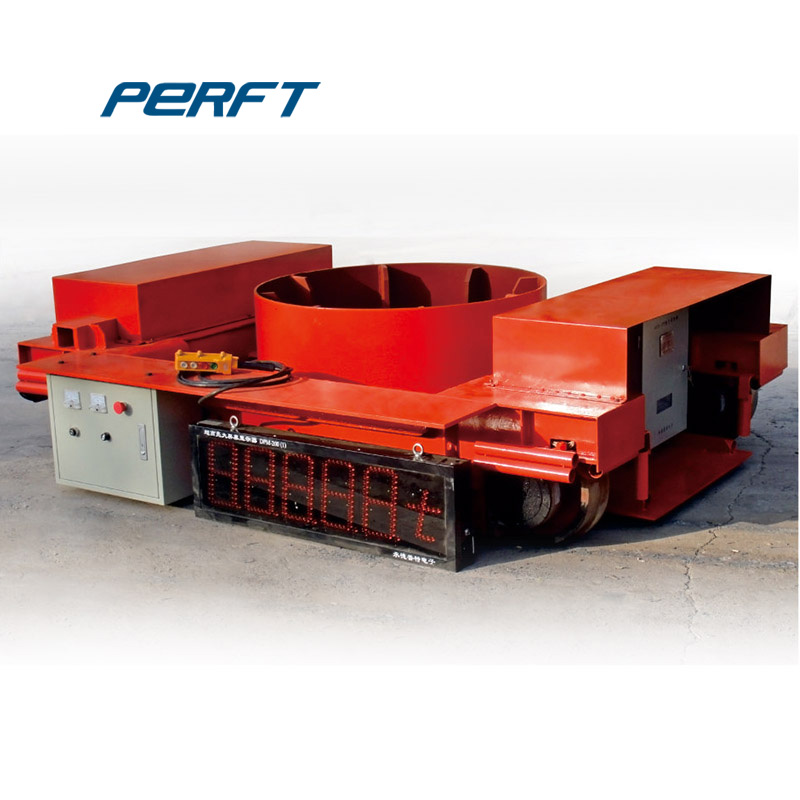

The weighing track flatbed is to transfer goods which require accurate weight and is not easy to handle. The track flatbed shown below is the BJT-80T, which is used to transport the ladle. It can show the weight of the ladle until reached the required weight. At the same time, omitted the reweighing step and shortened the next step. To a large extent, it saves a lot of manpower and time and realizes the state which the transportation and weighing are synchronized.
The application of weighing track flatbeds is mostly found in metal smelting enterprises. It is used to weigh some large metal objects such as molten steel and molten iron and is an indispensable transportation tool in the smelting industry.
