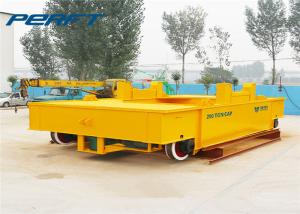

Industrial Ladle Transfer Cart Battery Powered Customized 1-300T Capacity

Brand Name : ladle transfer cart

Model Number : Industrial Ladle Transfer Cart

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 2000~7100 set

Payment Terms : L/C, D/A, D/P

Supply Ability : 80 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : Industrial Ladle Transfer Cart Battery Powered Customized 1-300T Capacity

Type : Ladle transfer car

Material : Q235

Wheel material : ZG235

Contact Now

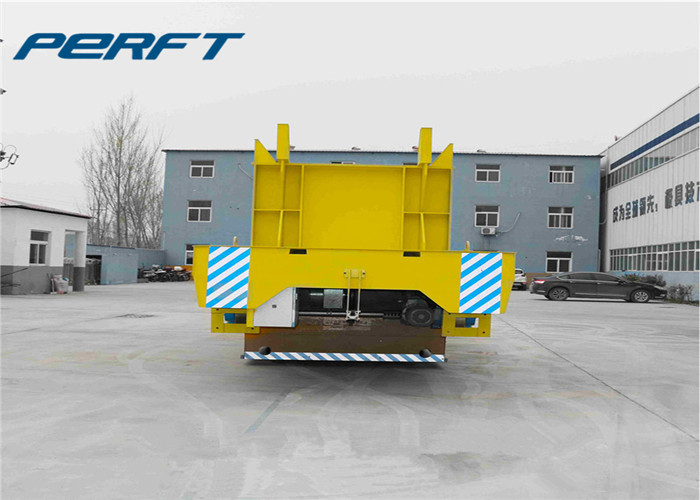

Industrial Ladle Transfer Cart Battery Powered Customized 1-300T Capacity

Customized anti-heat steel ladle transfer car with remote control, it makes the AC electricity power is transformed into AC 36v two-phase and are respectively connected to the two rails. Then the transfer car' wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the transfer car, And then the AC 36v is transformed into DC 36v and then control the DC motor through the DC control system to make the transfer car start, stop, go forward and backward and adjust the speed and so on.

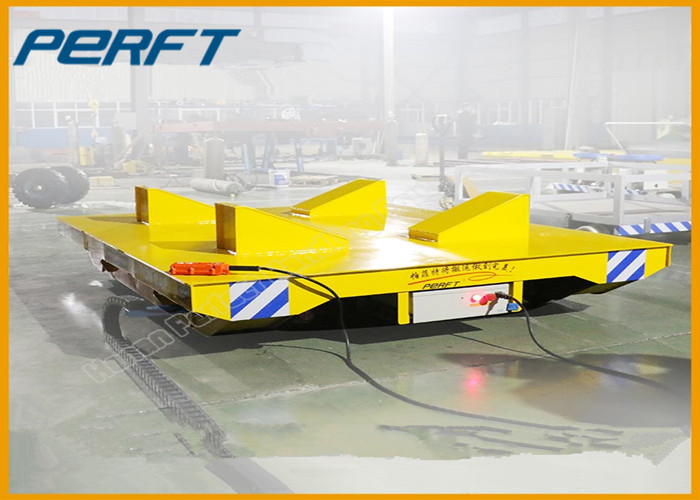

Industrial Ladle Transfer Cart Battery Powered Customized 1-300T Capacity

Advantages

  • The latest and the most popular factory handling equipment for the steel ladle transfer car;
  • The steel ladle transfer car gets power from rail;
  • The steel ladle transfer car, its load 1-500 tons and can be customized;
  • Cast steel wheel with durable and long lifetime for the steel ladle transfer car;
  • Box girder type frame which not easy to deformation for the steel ladle transfer car;
  • The steel ladle transfer car can be applied in the high use frequency;
  • The turning can be realized flexible without cable for the steel ladle transfer car.

Parameters

Model BXC-2T BXC-5T BXC-10T BXC-20T BXC-30T BXC-50T BXC-100T BXC-150T
Rated load (T) 2 5 10 20 30 50 100 150
Table size length(L) 2000 3500 3600 4000 4500 5500 6500 10000
Width(W) 1500 2000 2000 2200 2200 2500 2800 3000
Height(H) 450 450 500 550 600 650 850 1200
Wheel Base (mm) 1200 2500 2600 2800 3200 4200 4900 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000 2000
Wheel Diameter(mm) Φ270 Φ300 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity(Nos) 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 50 75 75
Running speed (m/min) 0-30 0-30 0-25 0-25 0-25 0-20 0-20 0-18
Motor Power (Kw) 0.8 1.5 1.5 2.5 4 5.5 11 15
Max Wheel Load (KN) 14.4 25.8 42.6 77.7 110.4 174 343.8 265.2
Reference Weight (t) 2.5 3.5 4 5.6 6.5 7.8 14.1 26.2
Recommended Rail Model P15 P18 P18 P24 P38 P43 QU100

QU100

Application

Industrial Ladle Transfer Cart Battery Powered Customized 1-300T Capacity
