Heavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant
This series Heavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant is powered by battery, traveling cable, rail, generator or other way.. This series Railroad Handling Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, Railroad Handling Vehicle On Rail is specially designed to cooThis series Heavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant is powered by battery, traveling cable, rail, generator or other way.. This series Railroad Handling Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, Railroad Handling Vehicle On Rail is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another. The Railroad Handling Vehicle has a feature of low height, heavy duty, safe security and other advantages.
Main Components of the Heavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant

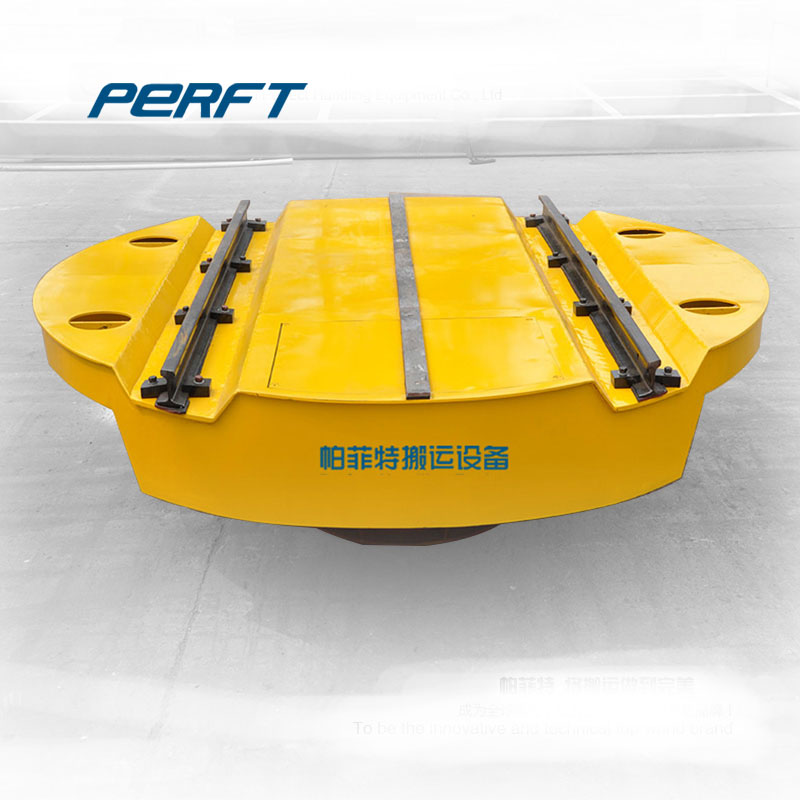

The Turntable Rail Transfer Car is a kind of handing system ,which can make the rail car turn 90 degree on rails .Principle: Transfer Car runs on the turntable ,which will automatically rotate or manually rotate to realize the joint with vertical rails .After turnable rotating ,the Transfer Cart can run along the vertical rails .The handing solution can be applied in the occasion such as ring rails ,etc. The turnable system of the Heavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant runs steadily and has the features such as high rail jointing accuracy and can meet full automatic electrical control
Advantage of the Heavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant
The Heavy Duty Industrial Turntable for Transfer is a patented product in perfte's company, which can run on the 90 degree turning railway. Wherever your cart is, only the turnplate exist, your cart an start in every direction,especially in working line or warehouse. it is convenient to transport your production. According to the way, our enterprise design the turnplate to satisfy others' demand.the feature as it follows:
1.Stable driving
2.High accuracy of rail connection
3.Totally automatically operated
4.Convenient and flexible
5.Control panel with wire or romote control.
Technical parameters of the Heavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant
| Model | BXC-2T | BXC-20T | BXC-50T | BXC-100T | BXC-150T |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Running Time | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Distance(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
Customer Visit
About Us
Product Tags:
|
|

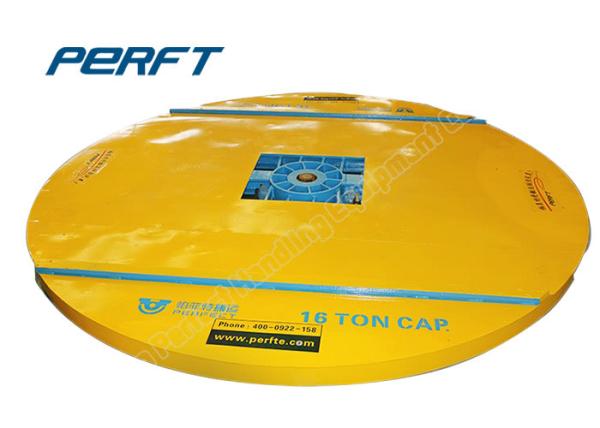

Heavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant Images
|
