Coil Transfer Trolley Motorized Rail Trolley for Aluminium Coil Transportation
The Coil Transfer Trolley Motorized Rail Trolley for Aluminium Coil Transportation is powered by cabled drum. The power source 380V alternating-current is supplied to the traction motor by cable. Cable is collected and released by coiling device mounted underneath the car. The transfer cart can realize full automatic operation by PLC system. The cart can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make it popular for workshop transportation. The cart can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the cart needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.
Advantage and functions of Coil Transfer Trolley Motorized Rail Trolley for Aluminium Coil Transportation
1. The remote controller has horn , forward , backward , fast forward , rewind , braking , etc . heavy duty material handling equipment.
2. The protection level is IP65.Displaying the quantity of electricity.
2. Micro-moving traction. Heavy duty material handling equipment-rail truck trailer has parking braking function to ensure that the ramp does not slip, and has manual parking brake clutch function.
3. Power emergency stop switch, reasonable installation position, convenient operation.
4. The charging wire not less than 15m, with automatic wiring arrangement, retracts.
5.Waterproof material .
6.Customizable.

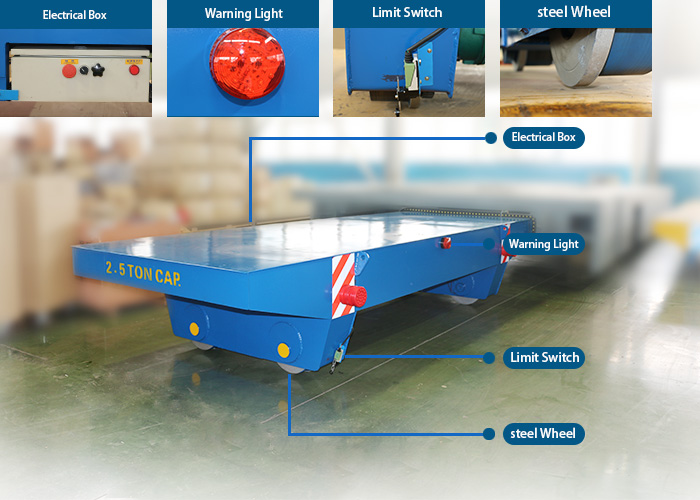

Main Componences of the material handling equipment for heavy load steel coil,aluminium coil transportation
Technical Table of Coil Transfer Trolley Motorized Rail Trolley for Aluminium Coil Transportation
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Application and Usage of Coil Transfer Trolley Motorized Rail Trolley for Aluminium Coil Transportation
Product Tags:
|
|

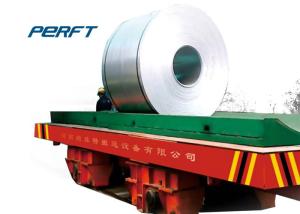

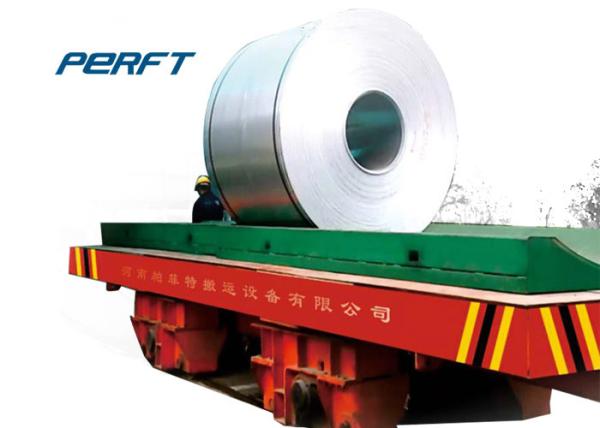

Coil Transfer Trolley Motorized Rail Trolley for Aluminium Coil Transportation Images
|
