20 Ton Industrial Ladle Transfer Car Free Maintenance Battery Electric Magnetic Brake

Name: 20 Ton Industrial Ladle Transfer Car Free Maintenance Battery Electric Magnetic Brake
Brand: High temperature resistance Industrial Ladle Transfer Car
Price: 3000 USD

Quality 20 Ton Industrial Ladle Transfer Car Free Maintenance Battery Electric Magnetic Brake wholesale

Brand Name : High temperature resistance Industrial Ladle Transfer Car

Model Number : High temperature resistance Industrial Ladle Transfer Car

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 3000~9000 set

Supply Ability : 100sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : High temperature resistance Industrial Ladle Transfer Car

Table Size : Customized

Color : Customized

Running speed : 0-20m/min

after-sales Service Provided : Engineers available to service machinery overseas

Contact Now

High temperature resistance Industrial Ladle Transfer Car

Product Description

Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of 20 ton Industrial Ladle Transfer Car . Our company has been founded for 13 years and has become enterprise in the motorized 20 ton Industrial Ladle Transfer Car business.

Our products have gotten 8 patents and exported to more than 50 countries and regions. Our main products include battery operated transfer trolley, hydraulic motor driven mobile trolley, cable operated transfer trolley, industrial trailers, non-powered transfer cart, electric rail car, motorized transporter, coils transport trolley, Industrial Ladle Transfer Car and so on.

20 Ton Industrial Ladle Transfer Car Free Maintenance Battery Electric Magnetic Brake

Technical Parameter of 20 ton industrial ladle transfer car

Model	5t	20t	30t	40t	50t
Rated Load(t)	5	20	30	40	50
Max. Wheel Load (t)	2.8	5.6	7.7	10	12
Ground Requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table Size (mm)	3000 X 2000	4500 X 2200	5000 X 2200	5500 X 2300	6000 X 2300
Height (mm)	450	600	650	700	700
Wheel Base (mm)	1500	1700	1700	1800	1800
Axles Distance (mm)	2500	3900	4300	4800	5200
Turning Radius (mm)	2501	3901	4301	4801	5201
Turning Structure	Mechanical
Motor Power (KW)	3.5	7	10	12	15
Wheel Diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel Material	ZG55+hydropurture
Running Speed (m/min)	0-15			0-12
Brake Principle	Electric magnetic brake
Operation Method	Raido Remote Control
Battery Maintainance	Free of maintainance
Charger's Installation	Installed on cart			Split-type
Cart Color	Customized
Charger's Function	Automatically cut off the power when the battery is fully charged
Radar Control	3-0.3 m, Automatic stop for obstacles
Warning Equipment	Horn and Flash Light
Other Functions	Turning light, night light and power display

20 Ton Industrial Ladle Transfer Car Free Maintenance Battery Electric Magnetic Brake

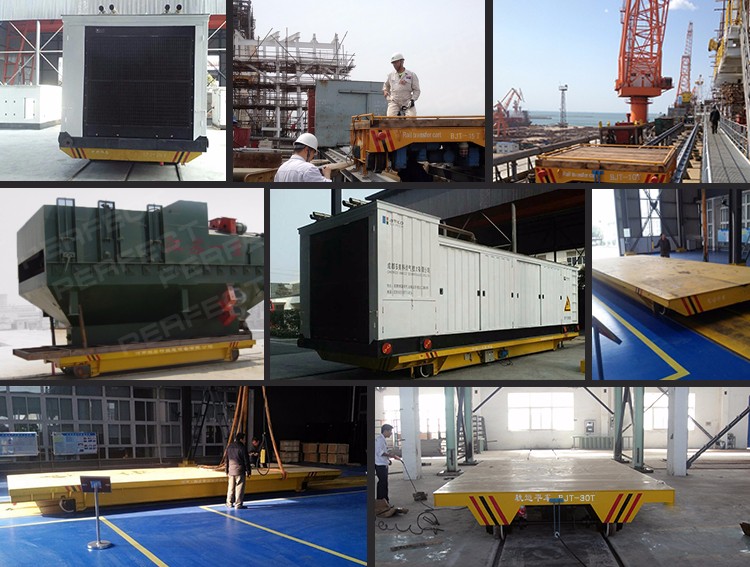

Application Sites Of Ladle Car

20 Ton Industrial Ladle Transfer Car Free Maintenance Battery Electric Magnetic Brake
