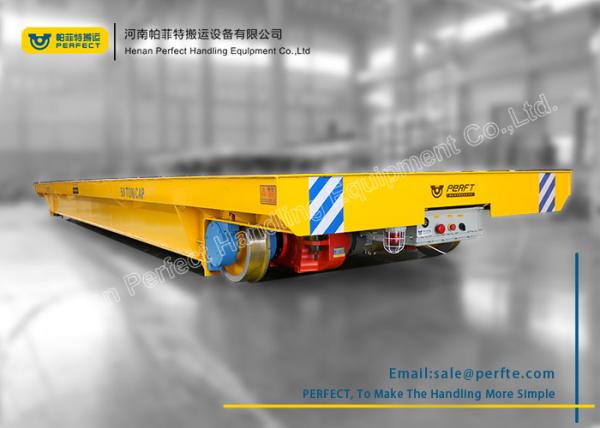

Large Capacity Rail Battery Transfer Cart Carriage with Casting Wheels

Name: Large Capacity Rail Battery Transfer Cart Carriage with Casting Wheels
Brand: PERFECT
Price: 1 USD

Quality Large Capacity Rail Battery Transfer Cart Carriage with Casting Wheels wholesale

Brand Name : PERFECT

Model Number : BXC

Certification : CE, SGS, ISO

Place of Origin : Xinxiang, China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 75 Sets per month

Delivery Time : 45 Days

Packaging Details : The whole cart is package with tarp, and parts will be packed by wood case

Powered Source : Storage Battery / Lead-acid Battery

Operation Mode : Pandent and Remote Controller and PLC

Cart Frame : Q235B

Rail Gauge : 1435mm (Customized)

Color : Yellow/Customized

Running Distance : No Limited

Wheel Type : Cast steel wheel

Safrty Device : Buffer, Alarm light, Emergency Stop Buttons

Special Function : Anti-Explosion, Heat-Resistant, Lifting, Dumpling

Dimension : Customized

Contact Now

Large Capacity Rail Carriage Transfer Cart with Casting Wheels

General Introduction of Rail Carriage

Large capacity rail carriage transfer cart manufactured in capacities ranging from 1 to 300 tons. They are battery powered and run on rails. The rail carriage transfer cart move loads of all types at ground level, for all industries and a huge variety of applications.

Usage and Working Condition of Rail Carriage

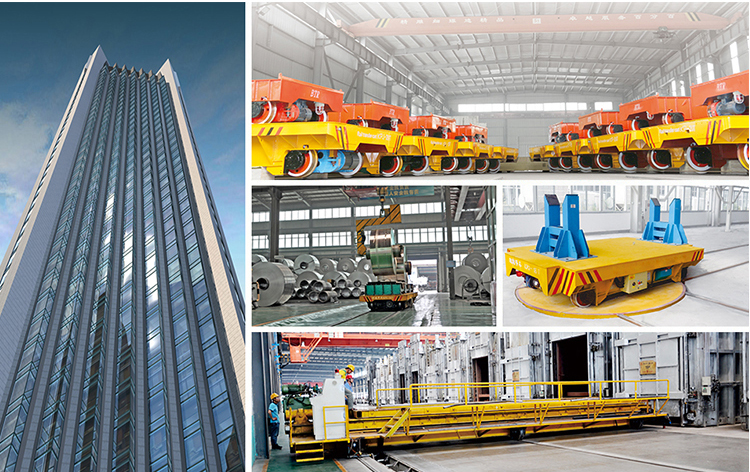

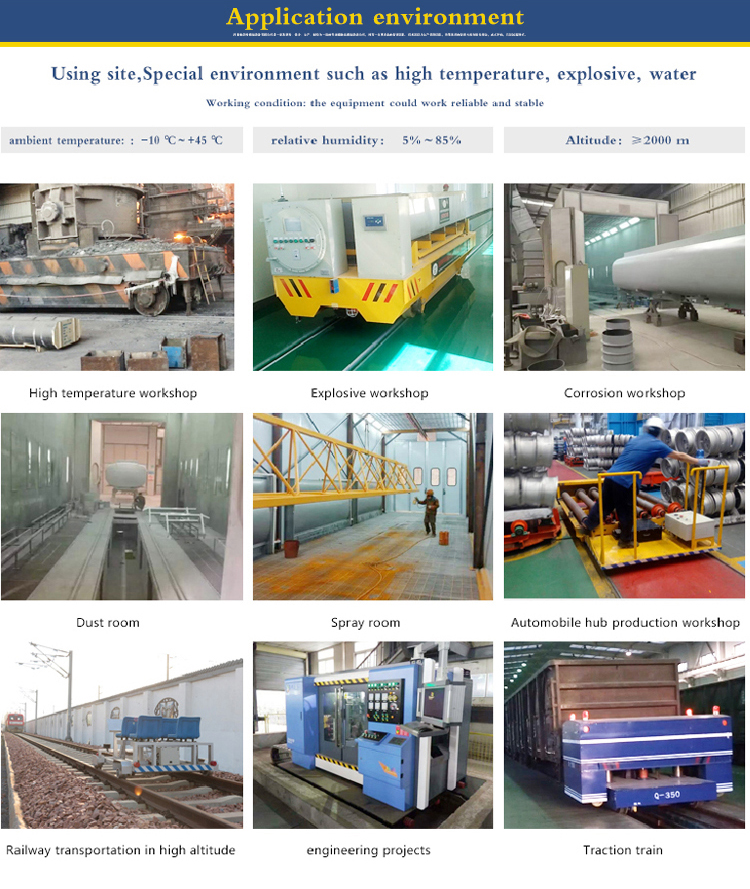

This large capacity rail carriage transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc

They are modular designed are available in a wide range of capacities and dimensions to suit any requirement. They are equipped with all the safety devices needed for ground-level machinery movement.

They are an important complement to cranes lifting heavy loads at ground level and the ideal solution for cargo transfer between ships.

Technical Parameters of Rail Carriage

BXC SERIES RAIL CARRIAGE TECHNICAL PARAMETER TABLE
Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(Km)		6.5	4.8	4	3.8	3.2
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

How to Choose a Suitable Rail Carriage?

Almost all of our rail carriage can be customized as client's requirement, for choose the most suitable large capacity rail carriage, please kindly providing the following inforamtion:

Transfer or handling what matrial/cargo?
What capacity do you need?
The carriage is running on rails or ground (floor)?
Your requirment for table size:length,width and height?
How about the running distance?
How many working hours in per day?

Large Capacity Rail Battery Transfer Cart Carriage with Casting Wheels

The Characters of Rail Carriage

This kind of large capacity rail carriage transfer cart is powered by battery, its operation is so easy. This series's battery powered rail carriage can be used both on the "s"and arc-shaped railways. They can also be used in the ferry condition and flammable, explosive environment. It is suitable to be used in the long distance transportation and low using frequency. Additionally, about the rail carriage, we have professional team to study the item, Attentively manufacturing, keeping on improving and elaborately serving to make our customers satisfied, it has been more than 10 years. up to now, the largest capacity reach to 300 tons.

Attentions and Notes of Rail Carriage

Load capacity, table size, rail gauge, speed can custom per client's demand.
Control way: push button pendant, remote control, operator platform mounted on cars.
Provide the optimized solution according to actual application condition.

Advantages of Rail Carriage

1.Powered by lead-aicd battery.
2.DC current: Stably and smoothly start or stop with small crash to reducer.
3.Offer more security and flexibility.
4.Long travel distance.
5.The track laying low.
6.The frequency of use is not high, suitable for long distance transportation.

7.The battery need regular maintenance, battery life as for about 2.5years, and use of the limited time; For long working time and more convenient, the miantenace free battery and the spare battery are both available

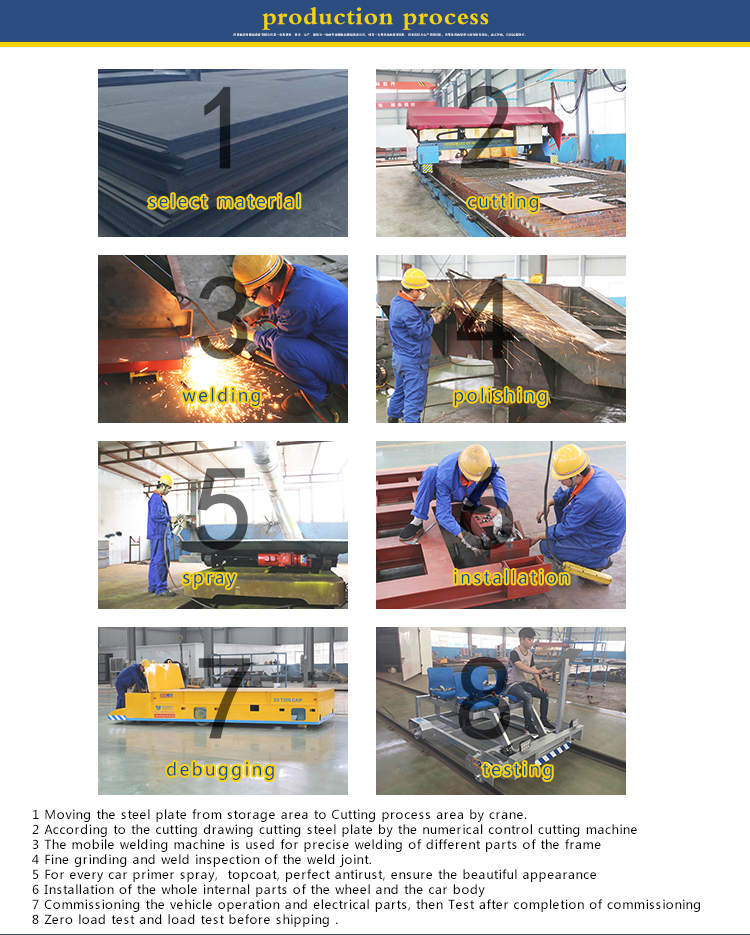

Processing Line

Preparation: Move the materials from storage to processing zone by crane.
CNC Cutting: Cutting the steel plate according the drawing
Welding: Precisely weld the cart body with mobile wilding machine
Polish: Check and polish the weld seam
Spraying: Spraying the primer and finish
Installation: Install the wheels and other components
Debugging: Debug the function and electrical part
Inspection: Inspect the cart with no-load test and full-load test by the third party

Large Capacity Rail Battery Transfer Cart Carriage with Casting Wheels
