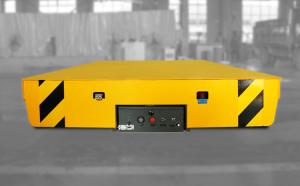

25t Pallet Transfer Cart Pipe On Rails Powered By Battery

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

25t Pallet Transfer Cart Pipe On Rails Powered By Battery

Brand Name : industrial transport wagon on rails

Model Number : industrial transport wagon on rails

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 3000~7800 set

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : industrial transport wagon on rails

Capacity : 1-300ton

Application : Industrial Filed

Running speed : 0-20m/min

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

25t Pallet Transfer Vehicle Pipe on rails powered by battery cart

Preview transfer cart

Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.
The pipe or coil transport trailer is used to move objects like cylinder coil, hot rolled steel, aluminum and paper roll coil, etc., from one place to another in the factory, it can move on concrete road or ground, and it can also move on rails.

Production process
CNC Cutting: Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling:
Put the cut steel plate together according to the design drawing
Welding: Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment: Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer: Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling: Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish :Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging :Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.
parameter of cart
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter (mm) 270 350 500 600 600
Running Speed (m/min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(km) 6.5 4.8 4 3.8 3.2
Recommended Rail Model P15 P24 P43 QU100 QU100

Applicable

PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
