Anti Explosion Rail Transport Equipment with DC Powered Transfer Carriage
Introduction

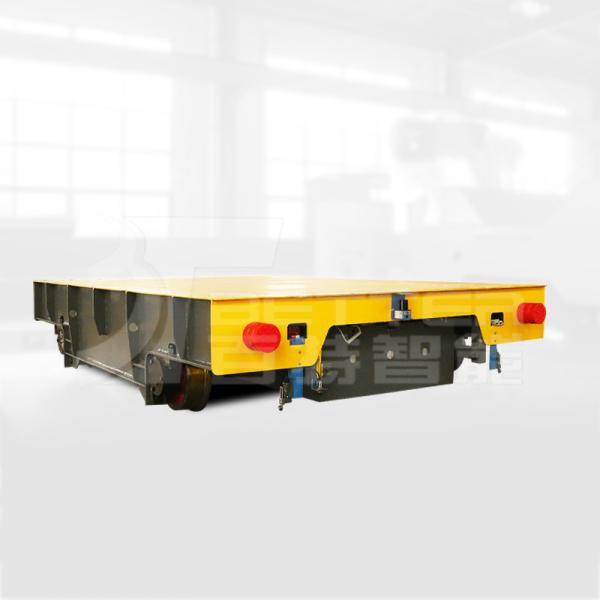

Our BXC series rail transfer wagon is powered by batterry. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which makes the cart to start, stop, move forward and move backward. It could run on straight line, L-form tracks or curved tracks. We can also fit hydraulic lifting system if needed.
Components
Storage battery, battery charger, Shaft and connecting shaft, transfer cart wheels, electrical control box, transfer cart frame, DC electric motor, , speed reducer, push button pendant, remote controller; The hydraulic lifting device can be added in the PLC controlled steel platform motorized wagon.
Applications

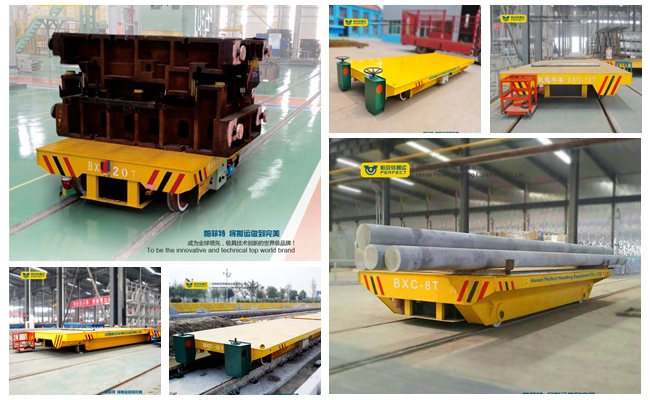

We produce a wide range of rail transfer wagon, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want!
Parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Q & A
How to choose the suitable transfer cart?
All of our transfer carts can be customized as client's requirement, for choose the most suitable transfer cart, please kindly providing the following inforamtion: - What material/cargo the transfer cart shuttle?
- What capacity do you need?
- What kind of ground the transfer cart operate on? (rails or cement floor)
- What the table size do you need? (length, width and height)
- How about the running distance?
- How many working hours in per day?
