Low Pressure Track Electric Rail Transfer Cart Vehicle Tool Waste Handling

Name: Low Pressure Track Electric Rail Transfer Cart Vehicle Tool Waste Handling
Brand: low pressure track electric transfer vehicle
Price: 2000 USD

Quality Low Pressure Track Electric Rail Transfer Cart Vehicle Tool Waste Handling wholesale

Brand Name : low pressure track electric transfer vehicle

Model Number : low pressure track electric transfer vehicle

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 2000~7500set

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : low pressure track electric transfer vehicle

Application : Transfer Materials

Color : Customized

Capacity : 1-300T

Running speed : 0-20m/min

after-sales Service Provided : Engineers available to service machinery

Contact Now

Low Pressure Track Electric Rail Transfer Cart Vehicle Tool Waste Handling

Product Description

Our low pressure track electric transfer vehicle not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. There are more than 150 employees including 10 senior engineers, 15 engineers, 25 technicians, the employees accepted higher education including postgraduate, undergraduate, junior colleague student occupied 80%. We cooperate with the Nanjing Engineering Institute all the year round and a senior welding engineer personally directs the production. Our company passed ISO9001 Quality management system and got the CE, ISO, SGS certificate. Meanwhile, we also got 8 national patents which are S type rail turning cart utility model patent, S type rail turning cart appearance patent, rail electric forklift utility patent, electric rail tractor utility patent, steerable Transfer Car Exportedutility patent, lifting electric cart utility patent, scissor hydraulic lifting electric cart patent, whole ring low pressure track electric transfer vehicle wheel and flat car patent.

Low Pressure Track Electric Rail Transfer Cart Vehicle Tool Waste Handling

Technical Parameters

Model		BDGZ-2t	BDGZ-16t	BDGZ-30t	BDGZ-50t	BDGZ-63t
Rated Load(t)		2	16	30	50	63
Table Size(mm)	Length(L)	2000	4000	4500	5500	5600
	Width(W)	1500	2000	2200	2500	2500
	Heigth(H)	450	500	600	650	750
Wheel Base(mm)		1200	2800	3200	4200	4300
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435
Wheel Diameter(mm)		270	350	400	500	600
Wheel Quantity		4	4	4	4	4
Ground Clearance(mm)		50	50	50	50	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-20
Motor Power(kw)		1	2	3.5	5	6.3
Transformer Power(KVA)		3	6.8	10	10	20
Transformer Quanity		1	1	1	1	1
Running Distance(m)		70	70	70	50	50
Max Wheel Load(KN)		14.4	64.5	110.4	174	221.4
Reference Weight(t)		2.8	5.5	6.8	8	10.8
Recommended Rail Model		P15	P24	P38	QU43	QU50

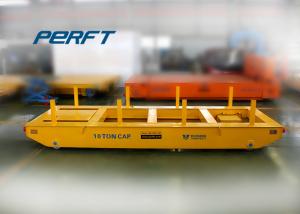

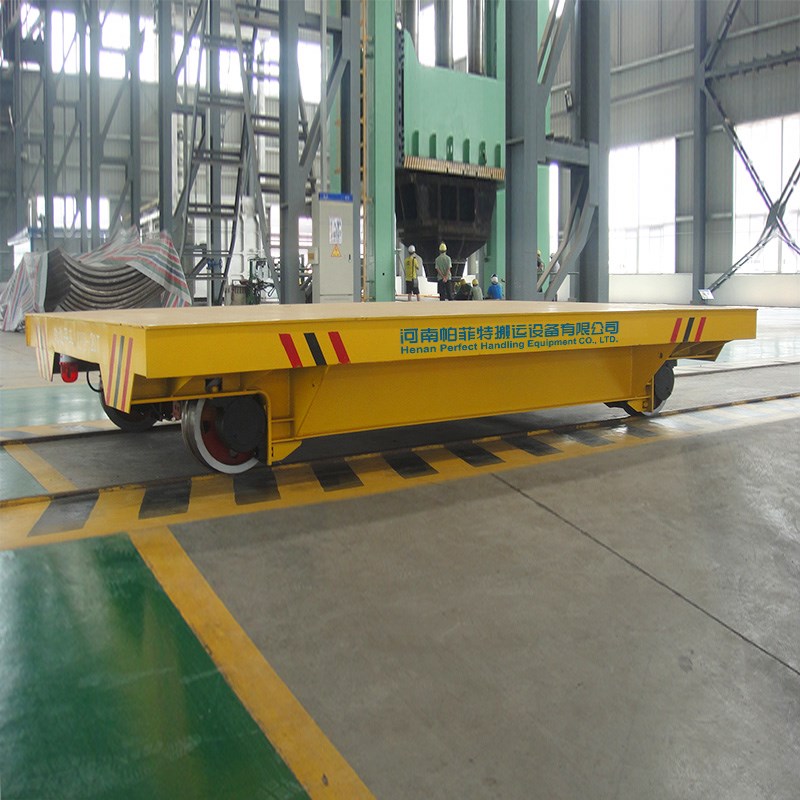

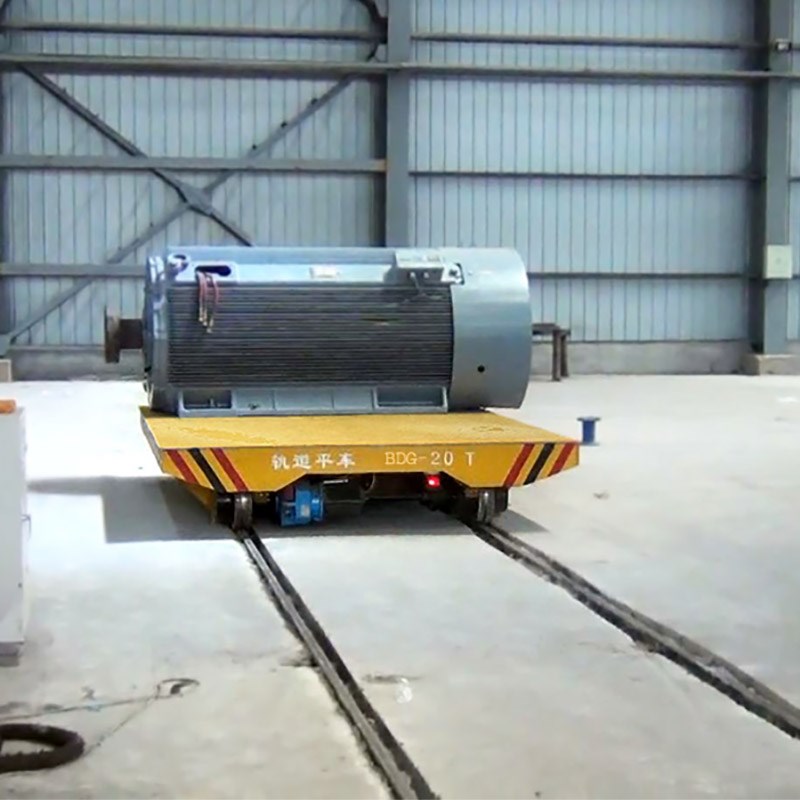

Detailed Image Of rail powered automatic track transfer trolley

Low Pressure Track Electric Rail Transfer Cart Vehicle Tool Waste Handling

Product Tags:

rail transfer car

load transfer trolley

Low Pressure Track Electric Rail Transfer Cart Vehicle Tool Waste Handling Images
