Battery Operated Platform Transport Coil Car , Rail Manual Trolley For Industrial

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

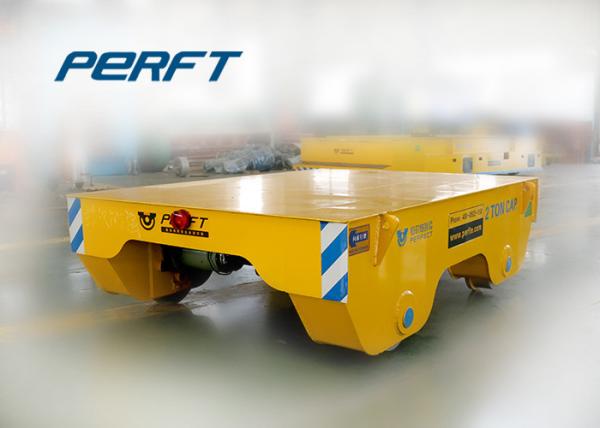

Battery Operated Platform Transport Coil Car , Rail Manual Trolley For Industrial

Brand Name : battery operated platform transport coil car

Model Number : battery operated platform transport coil car

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 2100~6500 set

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : battery operated platform transport coil car

Powered source : battery

Capacity : 1-300T

Warranty : 12 Months

Color : Customized

Application : Industrial Filed

Feature : Easy Operation

Contact Now

battery operated platform transport coil car ,rail manual trolley for industrial transport car

Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of battery operated platform transport coil car ,rail manual trolley for industrial transport car . Our company has been founded for 13 years and has become enterprise in the battery operated platform transport coil car ,rail manual trolley for industrial transport car business.This battery operated platform transport coil car ,rail manual trolley for industrial transport car is powered by battery.The battery is installed inside the platform transport coil car ,rail manual trolley for industrial transport car.The current is supplied to pulling motor through electric contric system,which makes the battery operated platform transport coil car ,rail manual trolley for industrial transport car start,stop,move forward,move backward,turn around,change speed,etc.

Battery Operated Platform Transport Coil Car , Rail Manual Trolley For IndustrialR

Battery Operated Platform Transport Coil Car , Rail Manual Trolley For Industrial

ailway Conveyer Railway Conveyer Railway Conveyer

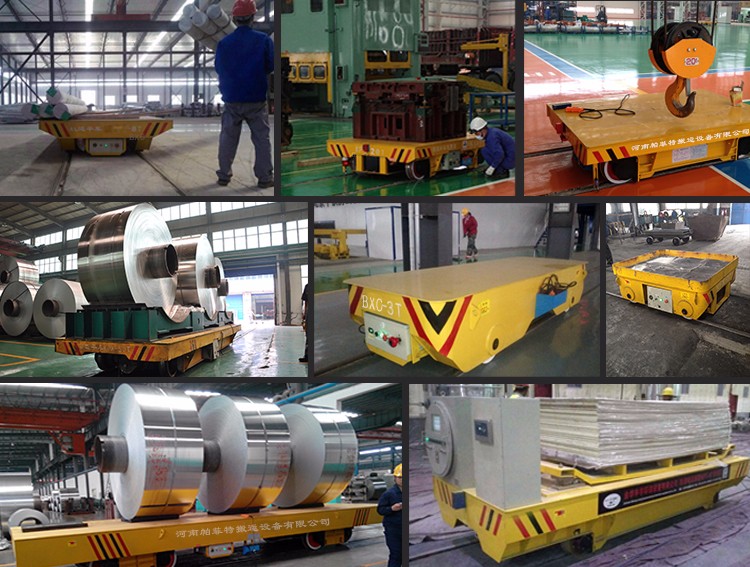

Detailed Image Of battery operated platform transport coil car

Battery Operated Platform Transport Coil Car , Rail Manual Trolley For Industrial

Welding & Maching Of battery operated platform transport coil car

Battery Operated Platform Transport Coil Car , Rail Manual Trolley For Industrial

Technical Parameters Of battery operated platform transport coil car
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

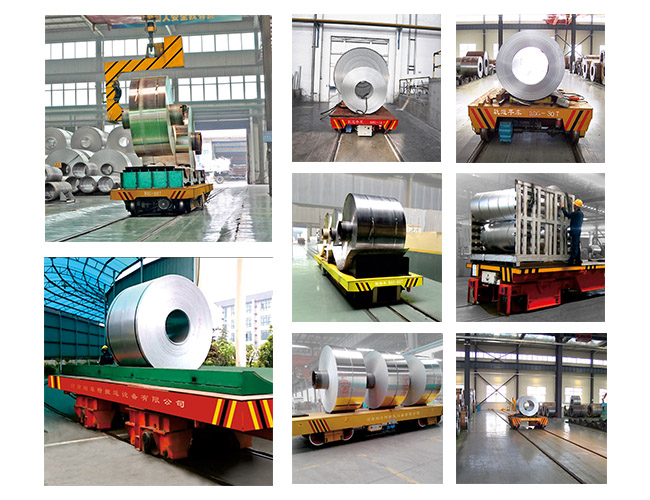

Application Sites Of battery operated platform transport coil car

Battery Operated Platform Transport Coil Car , Rail Manual Trolley For Industrial
